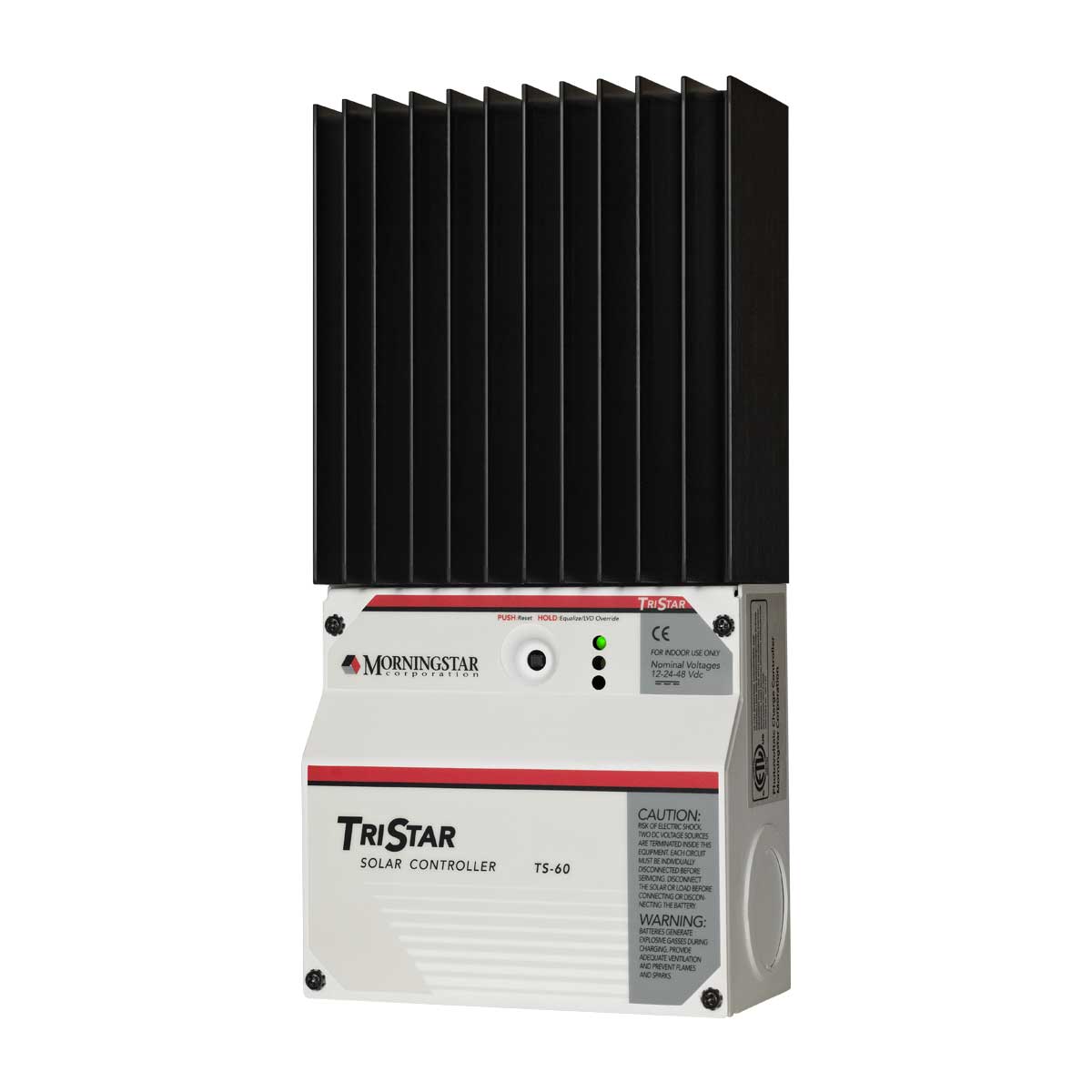

Morningstar TriStar TS-60 PWM Solar Charge Controller (60A / 12-48V)

The Morningstar TriStar TS-60 is a heavy-duty, 3-in-1 solar charge controller, load controller, or diversion regulator rated for 60 Amps in 12V, 24V, or 48V DC battery systems. Engineered for extreme reliability without derating up to 60°C, the TS-60 uses advanced 4-stage constant-voltage series PWM charging to maximize battery performance and lifespan. Its versatile DIP-switch settings allow easy field configuration, while an RS-232 port enables custom PC programming and data logging via Morningstar MSView software.

• MPN: TS-60

• Rated Current: 60 Amps (Solar, Load, or Diversion Control)

• System Voltage: 12V / 24V / 48V DC nominal

• Maximum Solar Input Voltage (Voc): 125V DC

• Control Functions: Selectable 3-in-1 mode (Solar Charging, DC Load Control, or Diversion Regulation)

• Technology: 4-stage Pulse Width Modulation (PWM) constant voltage series charging

• Terminal Wire Size: Accommodates heavy power conductors up to #2 AWG (35 mm²)

• Communications: RS-232 serial port for MODBUS protocols, PC programming, and data logging

• Operating Temperature Range: -40°C to +60°C (100% rated capacity without derating)

• Certifications & Warranty: UL 1741, cETL (CSA C22.2), CE, RoHS compliant; 5-Year Limited Warranty
