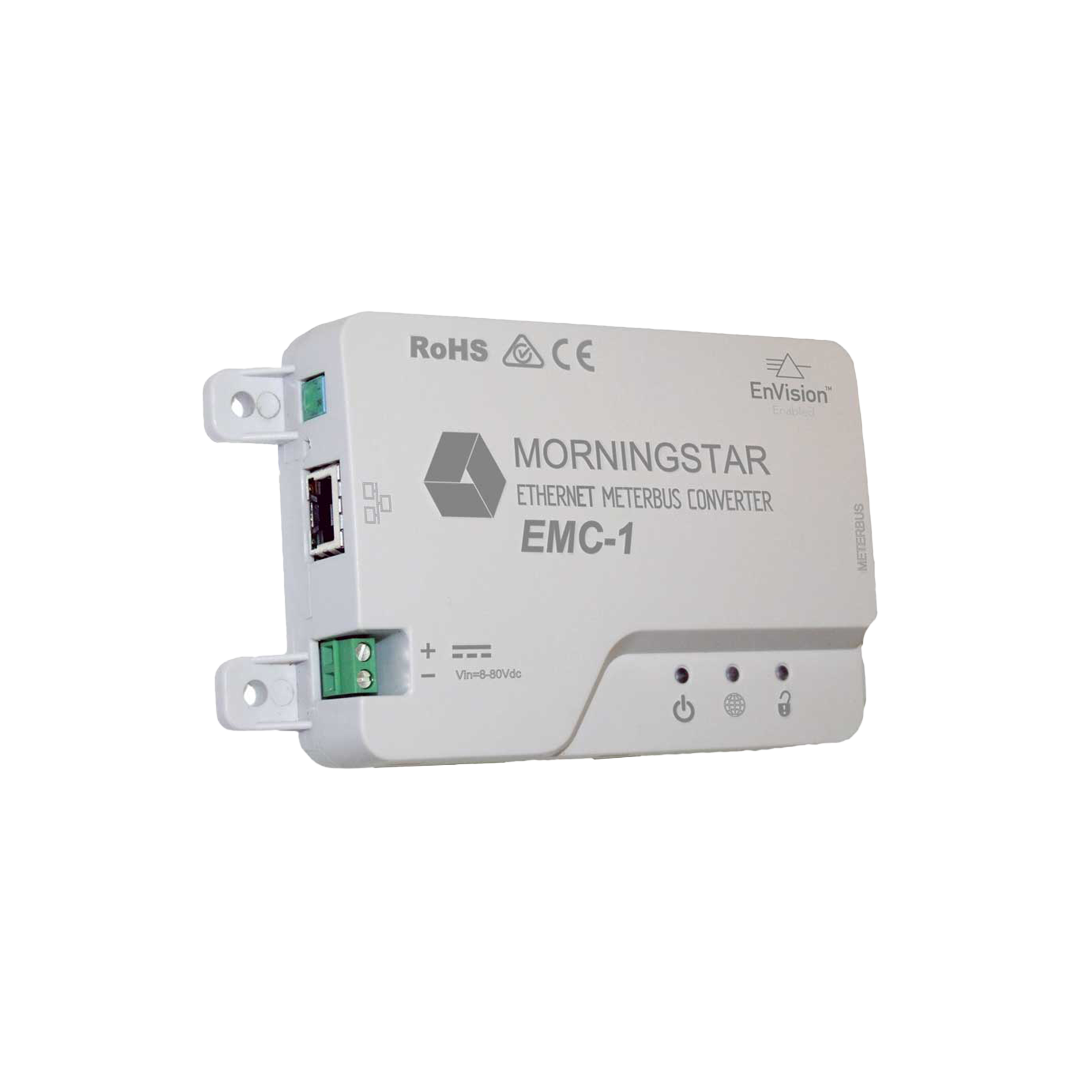

Morningstar EMC-1 Ethernet MeterBus Converter

The Morningstar EMC-1 provides IP-based networking and internet connectivity to any Morningstar solar charge controller or inverter equipped with an RJ-11 MeterBus port. By converting serial data to IP-based MODBUS, HTTP, and SNMP protocols, the EMC-1 enables remote monitoring, custom programming, and SCADA system integration for off-grid power installations.

• MPN: EMC-1

• Operating Voltage Range: 8V – 80V DC

• Maximum Self-Consumption: 2.0 Watts

• Supported Protocols: MODBUS TCP/IP, HTTP (LiveView web interface), and SNMP

• Communication Ports: RJ-11 MeterBus port & RJ-45 Ethernet port (10/100Base-T)

• Mounting: Tool-less attachment to standard 35mm DIN rail or surface mounting

• Operating Temperature Range: -40°C to +60°C

• Diagnostics: Onboard status LEDs for Ethernet activity, MeterBus connectivity, and unit state

• Compatible Morningstar Lines: TriStar MPPT, ProStar MPPT, SunSaver MPPT, TriStar PWM, ProStar (Gen 3), SunSaver Duo, and SureSine Inverters

• Certifications & Warranty: CE, RoHS, FCC Class B compliant; 5-Year Limited
