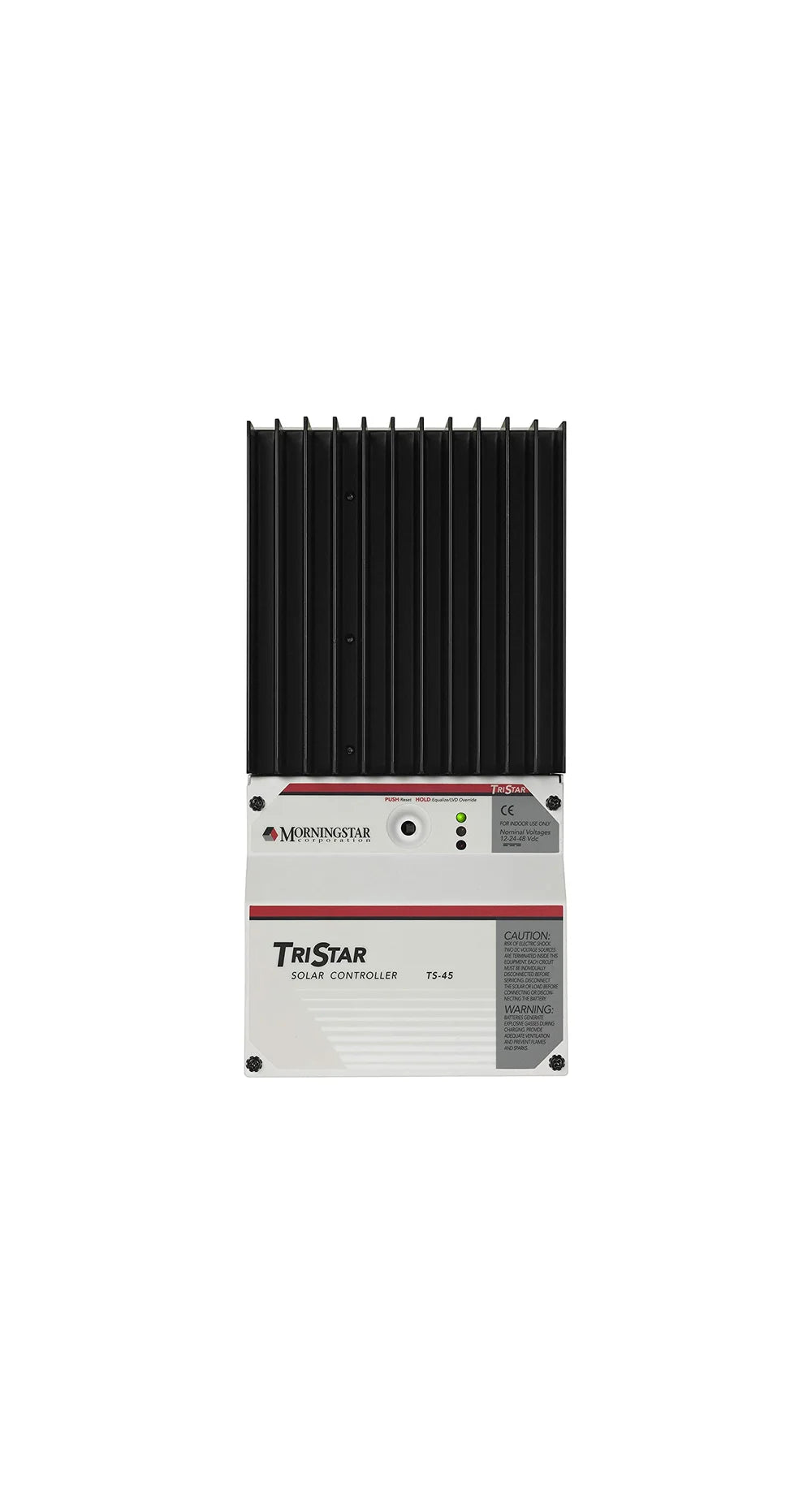

Morningstar TriStar TS-45 PWM Solar Charge Controller (45A / 12-48V)

The Morningstar TriStar TS-45 is a heavy-duty, 3-in-1 solar charge controller, DC load controller, or diversion regulator rated for 45 Amps in 12V, 24V, 36V, or 48V DC battery systems. Built with an oversized heatsink for maximum thermal management, the TS-45 operates at 100% rated capacity up to 60°C ambient without thermal derating. It delivers 4-stage constant-voltage series PWM charging for Lead-Acid, Lithium, and NiCd battery chemistries in remote industrial, SCADA, and telecom power systems.

• MPN: TS-45

• Rated Current: 45 Amps (Solar, Load, or Diversion Control)

• System Voltage: 12V / 24V / 36V / 48V DC nominal (auto-detect)

• Maximum Solar Input Voltage (Voc): 125V DC

• Control Functions: Selectable 3-in-1 mode (Solar Charging, DC Load Control, or Diversion Regulation)

• Technology: 4-stage Pulse Width Modulation (PWM) constant-voltage series charging

• Battery Compatibility: Lead-Acid, Lithium, NiCd, and custom profiles

• Terminal Wire Size: Heavy-duty power terminals accommodate up to #2 AWG (35 mm²) conductors

• Communications: RS-232 serial port for MODBUS protocols, custom DIP-switch presets, and PC data logging via MSView

• Operating Temperature Range: -40°C to +60°C

• Certifications & Warranty: UL 1741, cETL (CSA C22.2), CE, RoHS, ISO 9001 certified; 5-Year Limited Warranty
