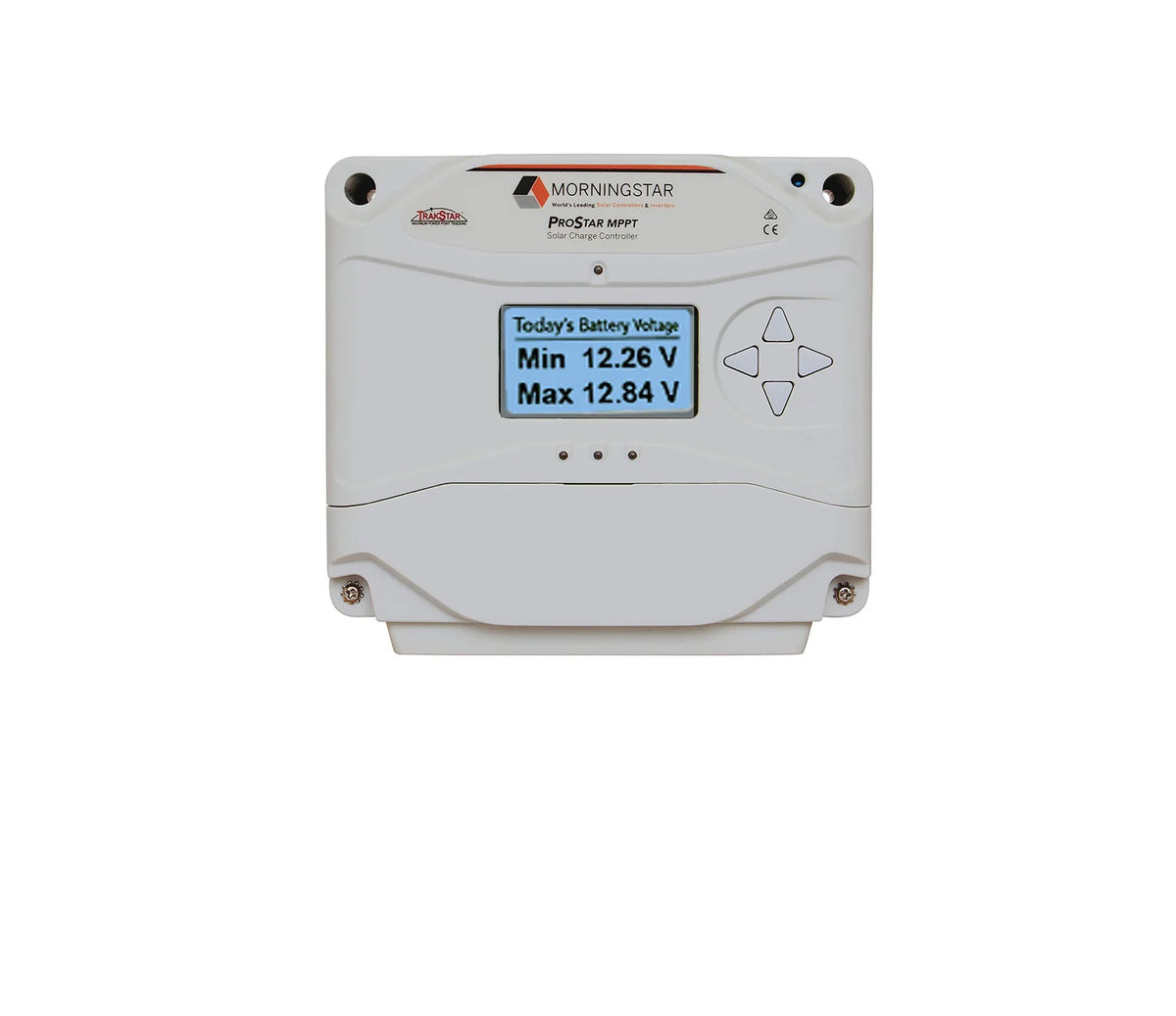

Morningstar ProStar MPPT PS-MPPT-40M Solar Charge Controller with Digital Meter (40A / 12-24V)

The Morningstar ProStar MPPT PS-MPPT-40M is a high-efficiency 40-Amp maximum power point tracking (MPPT) solar charge controller designed for off-grid battery systems up to 1,100 Watts. Powered by Morningstar’s TrakStar Technology™, it continuously optimizes energy harvest across changing solar conditions while delivering 4-stage charging for Lead-Acid, Lithium-Ion, and NiCd battery chemistries. This version includes a factory-installed backlit graphical digital meter for field monitoring and programming without requiring a PC, along with built-in 30A load and PV-based lighting control.

• MPN: PS-MPPT-40M

• Maximum Battery Current: 40 Amps

• Load Current Rating: 30 Amps (Integrated LVD/Load Control)

• Nominal Battery Voltage: 12V / 24V DC auto-detect

• Maximum PV Open Circuit Voltage (Voc): 120V DC

• Nominal PV Input Power: 550W @ 12V / 1100W @ 24V

• Integrated Meter Display: Backlit graphical LCD screen for active monitoring, diagnostics, and PC-free setting adjustments

• Peak Efficiency: 98%

• Data Logging: Internal storage records up to 256 days of detailed system performance metrics

• Communications: RJ-11 port for MeterBus / MODBUS protocols and PC setup via Morningstar MSView

• Environmental Protection: Conformal-coated PCB, marine-rated terminals, and durable polycarbonate housing

• Certifications & Warranty: UL 1741, IEC 62109, CSA C22.2, FCC Class B, CE, RoHS; 5-Year Limited Warranty
